ThreeBond 1184 is a synthetic rubber Visco-elastic semi-drying sealant that is ideal for joining engine cases where there is no gasket used. Long favored by vintage motorcycle engine builders for its workability and sealing properties.

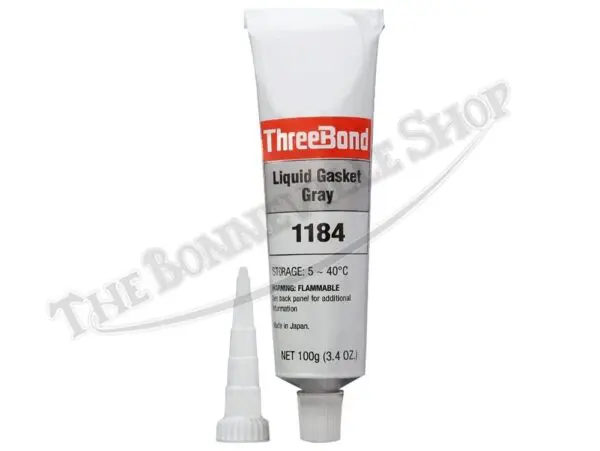

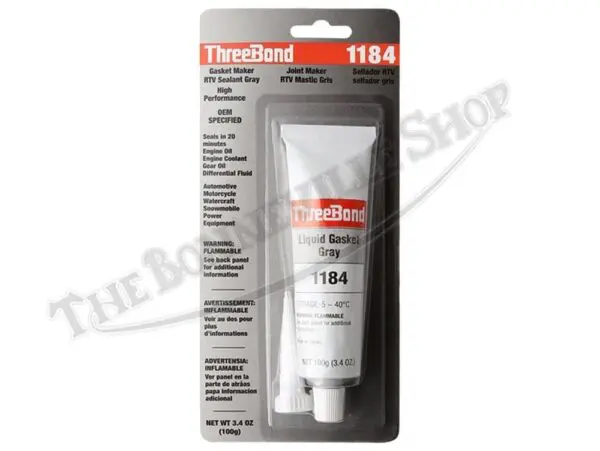

The ThreeBond 1184 sealant is a gray liquid with a pliable elasticity when dried. It offers excellent resistance to water, oil, gasoline, and chemicals with a temperature range of -40°C to 150°C. Made in Japan.
Sealants can be used in conjunction with traditional thin paper gaskets in applications where modern gaskets are not available.
Mating surface preparation is of the utmost importance when joining two parts to seal an oil-bearing cavity. Acetone can be used to clean residual or undesirable sealant from alloy surfaces.
Key Features:
- Resistance: Excellent resistance to oil, water, gasoline and chemicals.
- Vibration and Impact Absorption: The special synthetic rubber composition allows it to absorb vibrations and impacts without failure, particularly in environments involving coolants.
- Large Clearance Sealing: It shows excellent sealing effects on both normal bonded surfaces and those with large clearances.
- Versatility: Semi-drying nature allows for easier disassembly compared to fully curing sealant.
The product images shown are for illustrative purposes only and may not be an exact representation of the product received. Manufacturers occasionally make minor cosmetic changes to items, such as color, finish, label, or design. These changes do not impact the item’s function or compatibility. Please contact us if you have specific concerns regarding appearance.
____________________________________________________
ThreeBond 1184 FAQs
What is ThreeBond 1184 used for on a vintage motorcycle?
ThreeBond 1184 is a gray, semi-drying liquid gasket made from synthetic rubber. It is a good fit for joining engine case halves that have no gasket, and vintage motorcycle engine builders have used it for years. After it dries, it forms a rubber-like elastic seal that resists vibration and impact. That matters on the vertical twins and singles in classic British bikes, which vibrate a lot. It also seals well on surfaces that aren't perfectly flat or have large gaps, which is common on old alloy castings.
Can I use ThreeBond 1184 with paper gaskets, and how hot can it get?
Yes. Where a modern gasket isn't available, you can use ThreeBond 1184 together with a traditional thin paper gasket. It holds up to oil, gasoline, water and chemicals, and it works from -40°C to 150°C (-40°F to 302°F). The manufacturer's ThreeBond Europe product table confirms that temperature range. ThreeBond also says the sealant resists water, oil, LPG and gasoline.
How do I apply and remove ThreeBond 1184?
The most important step is preparing the mating surfaces. ThreeBond recommends removing grease, moisture and other contaminants before assembly. Then apply a thin, even coat and put the parts together quickly. The sealant becomes tack-free in about 12 minutes, so have your fasteners and torque wrench ready before you start. Because 1184 is semi-drying, it comes apart more easily than fully curing sealants. You can clean old sealant off alloy surfaces with acetone. For torque specs and assembly order, use a factory or Haynes manual from our Triumph manuals section.
